Bahena, Adolfo and De León Aldaco, Susana Estefany and Alquicira, Jesus UNSPECIFIED (2020) Simulation for a Dual Inverter Feeding a Three-Phase Open-End Winding Induction Motor: A Comparative Study of PWM Techniques. European Journal of Electrical Engineering, 22 (1). pp. 13-21. ISSN 21033641
|
Text

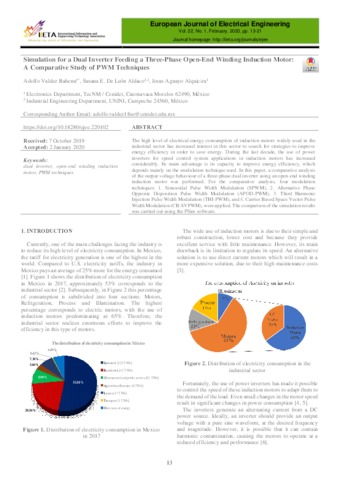

22.01_02.pdf Available under License Creative Commons Attribution Non-commercial No Derivatives. Download (1MB) | Preview |
Abstract
The high level of electrical energy consumption of induction motors widely used in the industrial sector has increased interest in this sector to search for strategies to improve energy efficiency in order to save energy. During the last decade, the use of power inverters for speed control system applications in induction motors has increased considerably. Its main advantage is its capacity to improve energy efficiency, which depends mainly on the modulation technique used. In this paper, a comparative analysis of the output voltage behaviour of a three-phase dual inverter using an open-end winding induction motor was performed. For the comparative analysis, four modulation techniques: 1. Sinusoidal Pulse Width Modulation (SPWM), 2. Alternative Phase Opposite Disposition Pulse Width Modulation (APOD-PWM), 3. Third Harmonic Injection Pulse Width Modulation (THI-PWM), and 4. Carrier Based Space Vector Pulse Width Modulation (CB-SVPWM), were applied. The comparison of the simulation results was carried out using the PSim software.
| Item Type: | Article |
|---|---|
| Uncontrolled Keywords: | dual inverter, open-end winding induction motor, PWM techniques |
| Subjects: | Subjects > Engineering |
| Divisions: | Ibero-american International University > Research > Scientific Production |
| Depositing User: | Sr Bibliotecario |
| Date Deposited: | 02 Jun 2022 11:52 |
| Last Modified: | 13 Jun 2023 13:47 |
| URI: | http://repositorio.funiber.org/id/eprint/2237 |
